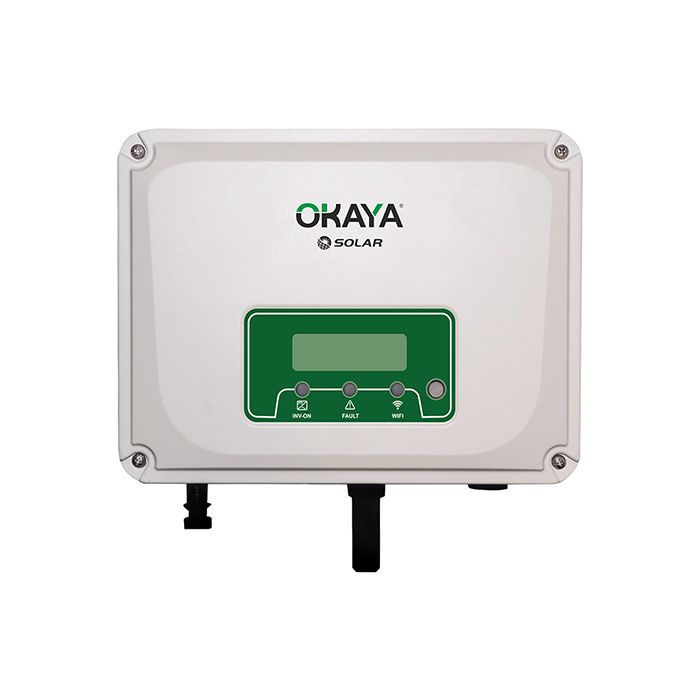

Okaya Solar MPPT Grid-Tied Inverter | 3kW 1-Ph | High Efficiency with 10-Year Warranty | BIS Certified
In stock
Model
SOLAR-GTI-3KW-P1
Offer Price
₹82,080.00
MRP
₹86,400.00
5% Off
(Incl. of all taxes)
- DC Input Overload Capacity (120%) - Allows more solar panel input to cater to future needs without replacing the inverter.
- Weather Protection – IP65 Rated - Withstands monsoons, dust, and extreme temperatures.
- Monitoring via Mobile App - Real-time performance tracking and remote alerts via Wi-Fi dongle.
The Okaya Solar GTI 3KW P1 is a compact and powerful single-phase grid-tied inverter designed for residential rooftops and small commercial solar systems. Featuring advanced MPPT technology, it optimizes energy harvest from your solar panels, delivering peak efficiency up to 98%. With integrated safety protections, low noise operation, and easy installation, this inverter ensures reliable performance and long service life. Its natural convection cooling and lightweight design make it a cost-effective choice for sustainable energy generation.
- Rated Output Power: 3kW
- Max. Peak DC Input Power: 3.6kW
- Max. DC Input Voltage: 550 V
- MPPT Voltage Range: 70 V – 550 V
- No. of MPPTs / Strings per MPPT: 1 MPPT / 1 String
- Max. Output Current (AC): 13 A
- Grid Output Voltage Range: 140 V – 300 V (230 V rated)
- Conversion Efficiency (Max.): 98%
- Dimensions (W×H×D): 297 x 223 x 117 mm
- Weight: 4.5 kg
- IP Rating: IP65 – Dust-tight and water-resistant for outdoor use.
- Operating Temperature Range: –25°C to +60°C
- Anti-islanding, over-voltage & surge protection
- Natural convection cooling, <30dB noise level
- IP65 protection for outdoor use
- 10-year standard warranty
- Display: LCD Display with LEDs
- Certifications:
- BIS
- IEC 62109-1/2
- IEC 61727
- IEC 61683
- IEC 60068
- IEC 62116
- IEC 61000 EMC
- High Efficiency (up to 98%) - Converts more solar energy into usable electricity, reducing your grid consumption.
- DC Input Overload Capacity (120%) - Allows more solar panel input to cater to future needs without replacing the inverter.
- Compact & Lightweight Design - Enables easy wall mounting even in tight spaces.
- Weather Protection – IP65 Rated - Withstands monsoons, dust, and extreme temperatures.
- Connectivity Options - RS485, USB, and Wi-Fi allow seamless monitoring and control via mobile app.
- Feed-in Limitation Support - Ensures safe integration with utility regulations.
- Monitoring via Mobile App - Real-time performance tracking and remote alerts via Wi-Fi dongle.
| Model | SOLAR-GTI-3KW-P1 |
|---|---|
| Capacity | 3 kW |
| Warranty (In Months) | 120 |
| Dimension (mm) | 117*297*223 |
| Display Type (LCD/LED) | LCD + LED |
| Net Weight (Kg) | 4.5 |
| Technology | MPPT |
| Country of Manufacture | India |
| Manufacturer | Okaya Power Private Limited |
| Free Installation | No |
